Aluminum Alloy Hinge Boring Drill Guide Jig for Woodworking Cabinet Doors
Highlights:
- Durable aluminum alloy construction for long-lasting use.
- Three groups of hole spacing and adjustable drilling depth for precise and accurate drilling.
- Compatible with 3mm, 4mm, 5mm, and 6mm hinge offsets, suitable for various hinge types.
- Universal clamp for stable and strong clamping of workpieces.
$ 64.99
Free Shipping.
Estimated delivery on 1 - 3 January, 2025
Free 30-day returns.
For any reason.
30 in stock
Frequently bought together
Aluminum Alloy Hinge Boring Drill Guide Jig for Woodworking Cabinet Doors
- Durable aluminum alloy construction for long-lasting use.
- Three groups of hole spacing and adjustable drilling depth for precise and accurate drilling.
- Compatible with 3mm, 4mm, 5mm, and 6mm hinge offsets, suitable for various hinge types.
- Universal clamp for stable and strong clamping of workpieces.
Description
- This Aluminum Alloy 35mm Hinge Boring Hole Drill Guide Jig is the perfect tool for woodworking enthusiasts who want to install cabinet doors easily and professionally.
- Made from durable aluminum alloy, this jig comes with a 35mm hole opener and 2mm drill bit for precise and accurate drilling.

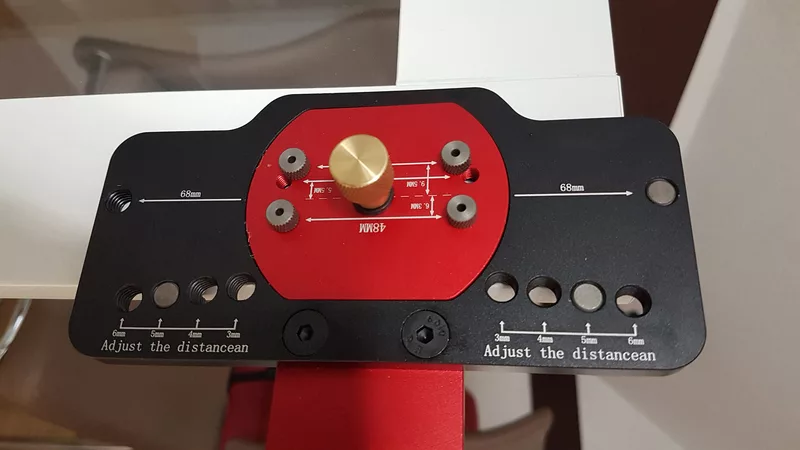

- The jig features three groups of hole spacing, including:
- 45mm to 9.5mm.
- 48mm to 6.3mm.
- 52mm to 5.5mm.
- Hinge Boring Hole Drill Guide Jig is compatible with (( 3mm, 4mm, 5mm, and 6mm )) hinge offsets.
- Equipped with a limit ring, this jig allows for adjustable drilling depth, making it easier to drill precise holes.

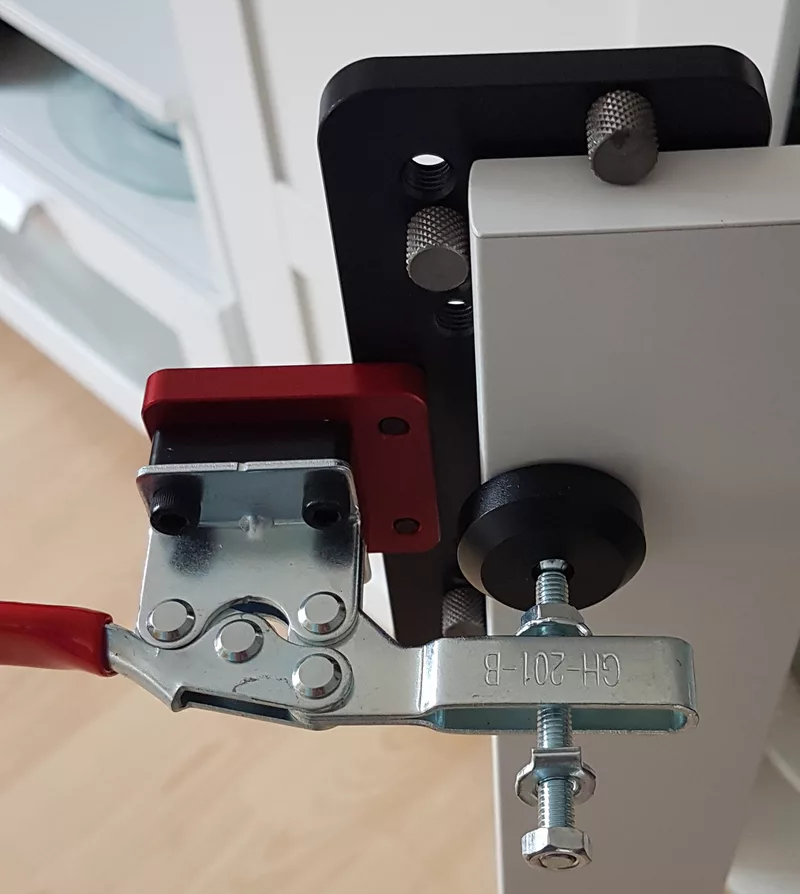

- Additionally, the jig comes with a universal clamp, providing stable and strong clamping for workpieces with a clamping board thickness of 15-25mm. The drill sleeve has a precision bearing guide, ensuring smooth and simple hole drilling.
- Overall, this Aluminum Alloy 35mm Hinge Boring Hole Drill Guide Jig is a must-have for woodworking projects that require accurate hinge hole drilling.
Package Included:
- (1) Hinge Boring Hole Drill Guide Body
- (2) Drilling Guide Locator
- (1) 35mm Hole Opener
- (1) 2mm Drill Bit
- (2) Wrench
- (1) Bearing
Related products
Tydeey Aluminum Pocket Hole Jig Kit Woodworking Hole Locator Angle Drill Guide
Discover the Tydeey Pocket Slant Hole Jig Wood Toggle Clamps, your ultimate woodworking companion. This Carpenter Kit is tailored for a wide range of materials, offering adjustable functionality for thicknesses from 0.4 to 1.97 inch. Create precise flush, corner, and angle pocket hole joints with ease. Its robust construction guarantees longevity, while the comprehensive kit, including a hole puncher, step drilling bit, and more, equips you for all your woodworking endeavors.
8 reviews for Aluminum Alloy Hinge Boring Drill Guide Jig for Woodworking Cabinet Doors
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Charlotte Jones –
This 35mm Hinge Gauge is a professional tool constructed of aluminum for inserting hinges into wooden cabinet doors. The excellent craftsmanship and precise fit of all components make a favorable impression. The screw-in spacers provide precise adjustment for hinges of varying sizes. The hinge gauge can be securely clamped to the workpiece with the clamping bracket to prevent slippage. The threaded screw connection allows for the locking to be tailored to the thickness of the workpiece. The included spiral drill performs its work precisely and cleanly. It is a fast and stable solution for installing hinged belts. The drilling depth can be set uniformly for all holes using an adjusting ring.
Daniel Wright –
The packaging is of high quality and attention has been given to details. This is an excellent product that is well-made and provides good value for its price. It is an exceptional purchase.
Anthony Phillips –
The product matches its description. It is well-constructed and offers numerous configuration options. It is perfect for positioning hidden cabinet hinges.
Nathan Rodriguez –
This item has a solid and secure feel to it. The components fit together perfectly and seem to be of excellent quality. Surprisingly, it is heavier than I initially anticipated.
Madison Foster –
This is an outstanding product! The craftsmanship is exceptional, especially considering the cost compared to other suppliers who offer only cheap plastic. All components are manufactured from CNC milled aluminum. Only the clamping lever is constructed of galvanized sheet metal, which nonetheless gives a high-quality impression. As for the durability of the forstner drill, I cannot speak to it yet. However, since it is a standard, it can be effortlessly replaced if necessary.
Isabella Taylor –
This tool is exceptional, providing 100% accuracy while drilling both the primary hole and screw mounting holes in roughly 15 seconds, thus saving a considerable amount of time.
Victoria Nguyen –
Compared to a Kreg, the craftsmanship of this jig is of much higher quality. It is a high-quality tool available at a very reasonable price.
Nicholas Lee –
I have never before installed hinges with drilled holes, but this jig made it a breeze. The only drawback was the complete lack of instructions, which meant that I had to figure it out myself. After a lot of trial and error on scrap materials, I was able to successfully install my hinges perfectly. Overall, it is a nice piece of equipment.
